BVE5 Sobu and Narita line

What's Sobu and Narita line?

Sobu@main line is most old railway in Chiba prefecture.

This route opened from Ichikawa to Sakura in December 1894 by Sobu Railway at that time.
The Narita Line starts in 1897 when the then Narita Railway opened a railway from Sakura to Narita, connected to Sobu Railway.

The purpose was mainly as a means of transportation of visitors to Naritasan Shinshoji Temple.
After that, from Narita to Sawara it has been stretched sequentially by 1900, and the Abiko branch line to Abiko also opened at the same time.
Sobu Railway and Narita Railway were nationalized, then became National Railways Soubu Main Line and Narita Line.
It has served as worshipers of Naritasan Shinshoji Temple and local transportation, and since 1978 Narita Airport opened, it begin to play a role as airport access.
By the privatization of the National Railways in 1987, the operation changed to JR East.
In 1991 a new route from Narita station to Narita airport opened and Narita Express started operation.

Today, centering on Narita Airport access such as Narita Express and Rapid-transit train, Express trains connecting Tokyo and Choshi via Sobu main line, Local trains of Sobu main line connecting Chiba to Sakura, Naruto and Choshi, Local train of Narita line connecting Chiba to Sakura, Narita, Sawara and Choshi.


Chiba Sta.

Chiba City is the central city of Chiba Prefecture, Chiba Station is its representative station in Chiba City.
To this station are JR lines to Chiba prefecture regions and Tokyo, and monorail connecting various places in the city.
Until the relocation in 1963 there was a this station near the present Higashi-Chiba station.

Sakura Sta.

Sakura city is a town which prospered as the castle town of the Sakura clan during the Edo period.
At this station, it is divided into Narita line and Sobu main line.

Narita Sta.

Narita station is the central station of Narita city which is prosperous Naritasan-Shinshoji Temple's temple town and Narita Airport.
At this station, it is divided into three lines: railway to Sawara, Choshi, railway to Narita airport, and railway to Abiko, Ueno.
Therefore, there are platforms No.1 to No.6 (missing number 4), and there is also a space that holds extraordinary Increase train for worshipers to Naritasan Shinshoji temple.
There is Keisei Narita station in the immediate vicinity and it is also possible to transfer to each other. Japanese lantern("Cho-chin") is on the platform No. 1, This is a specialty of this station.

Sawara Sta.

Sawara station is central of Katori city. This station is a relatively large station with platforms No.0 to No.3, Platform No.0 is for the Kashima line.

This station was in Sawara city until 2005 when municipal mergers took place.
In the Edo period, Sawara was prosperous enough to be said to be Edo-Masari (flourishing than Edo) as a gathering place of the ToneRiver water transport.
Although the Tone River water transport has declined due to the development of land transportation such as automobiles and railroads, old buildings of the time still remain along Onogawa River, and it is now a sightseeing spot called "KOEDO" (mean Little-EDO).

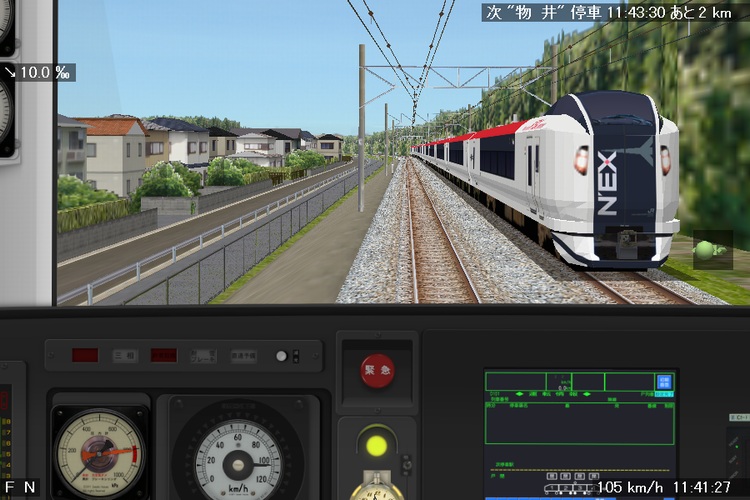

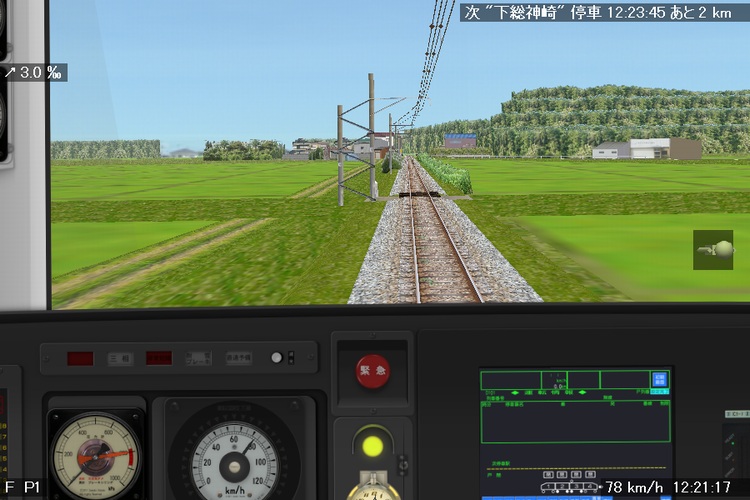

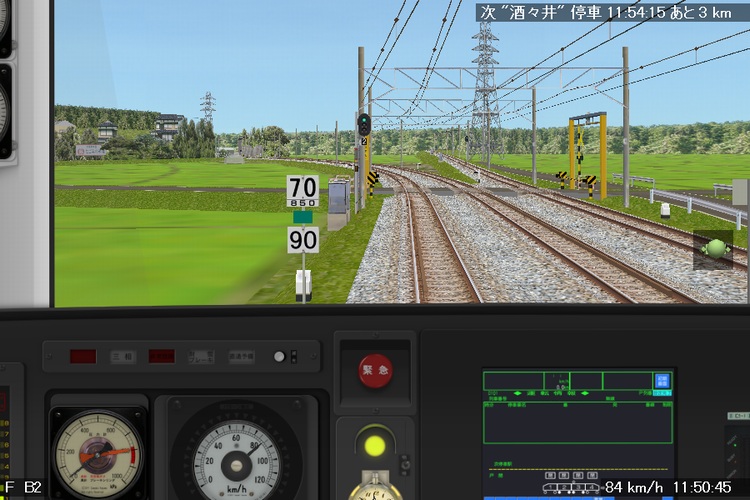

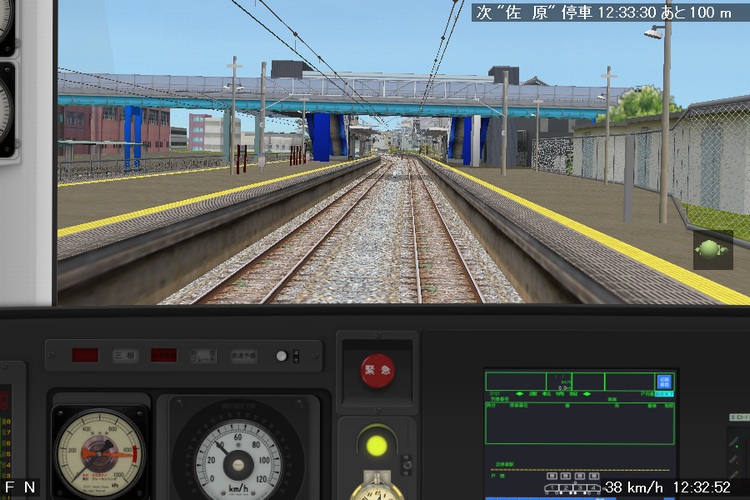

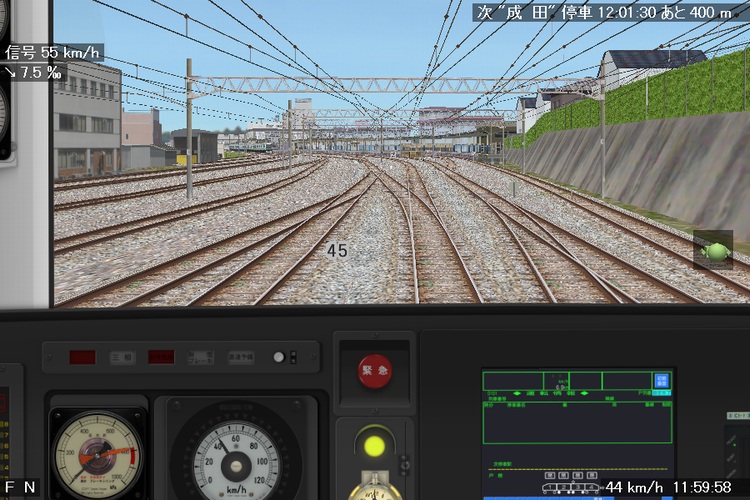

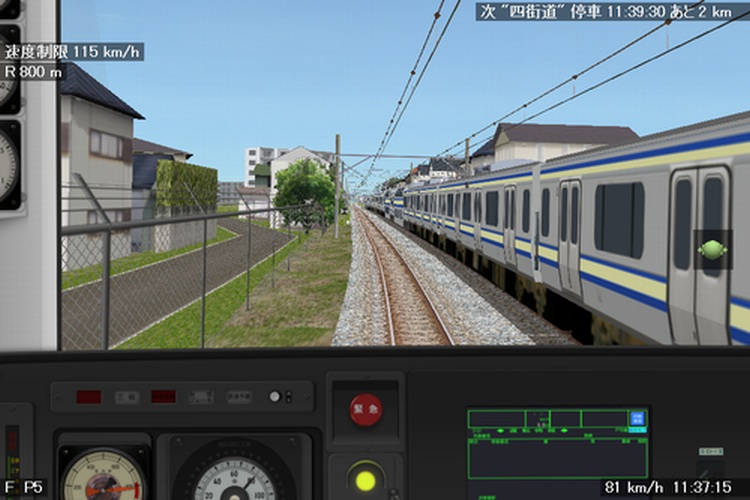

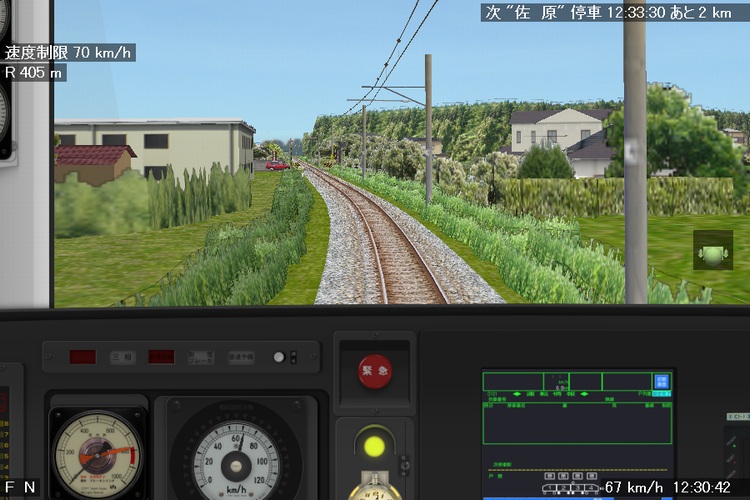

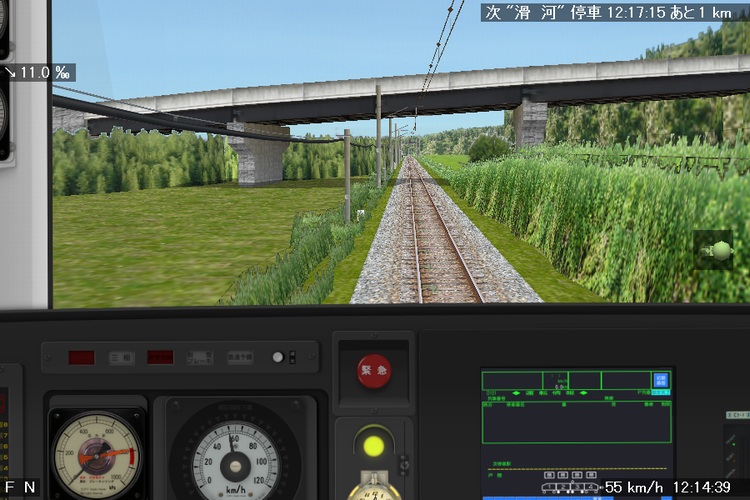

Screen Shot

Chiba Station


Tsuga to Yotsukaido


Yotsukaido to Monoi


Sakura to Shisui


Narita Station


Kuzumi to Namegawa


Namegawa to Shimousa-Kozaki


Oto to Sawara


Sawara station


Signal & Indication

Max Speed

Section Max Speed

The maximum speed of the straight part varies depending on the vehicle and the section.

Series 113

Series 211/209//E217

Series 183/189/485

Series 253/255/E257/E259

Chiba to Narita

100km/h

110km/h

120km/h

120km/h

Narita to Sawara, Kashima-Jingu

85km/h

85km/h

85km/h

85km/h

The maximum speed depends on the cargo train.


Position to stop at the station

Position to stop at the station

The stop position at the station depends on both numbers of trains.
The train stops at the stop position indicator location with the same number as number of cars.

If there is no sign with the same number, it stops at the sign of the nearest numeral which is larger than the number of cars.

Signals and Indication necessary for driving BVE Sobu / Narita Line

Departure/Arrival/Section Signal

Green
"Shinko"

Green-Yellow
"Gensoku"

Yellow
"Chui"

Yellow-Yellow
Keikai

Red
"Teishi"

G

YG

Y

YY

R

Chiba to Narita

Max Speed

75km/h or less

55km/h or less

25km/h or less

Stop

Narita to Sawara, Kashima-Jingu

Max Speed

65km/h or less

45km/h or less

25km/h or less

Stop

Cargo Train

Max Speed

65km/h or less

45km/h or less

25km/h or less

Stop

Relay Signal

"Chukei-Shinko"

"Chukei-Seigen"

"Chukei-Teishi"

Relay-Blue

Relay-Yellow

Relay-Red

Next Signl indicate

Blue Signal

Blue-Yellow or Yellow,
Yellow-Yellow signal

Red Signal

Speed limit Mark

It is installed in the section where it is necessary to suppress the speed from the maximum speed depending on the curve, turn out, and condition of the track.

Speed limit Mark
1 line

Speed limit Mark
1 line

Speed limit Mark
Turn out

Speed limit 1 line

Speed limit 1 line

Speed limit Turn out

Description

Shows the speed limit.

Shows the speed limit.
Has indicated limit distance numbers below.

Speed limit of Turn out.

Cargo Train

Indication Speed

Indication Speed

Indication Speed

Series 113/115

Indication Speed

Indication Speed

Indication Speed

Series 211

Indication Speed

Indication Speed

Indication Speed

Series E217/209

Indication Speed

Indication Speed

Indication Speed

Series 183/189/485

Indication Speed

Indication Speed

Indication Speed

Series 253/255/E257/E259

Indication Speed

Indication Speed

Indication Speed



Speed limit Mark
2 line

Speed limit Mark
2 line(Green Marker)

Speed limit Mark
2 line(Orange Marker)

Speed limit Mark 2 line

Speed limit Mark 2 line

Speed limit Mark 2 line

Description

Shows the speed limit.
The lower line is the limit speed indicator for express train.

Shows the speed limit.
The lower line is the limit speed indicator for express train.
If there is a green marker, the speed limit will be higher than the display of the Local train.

If there is an orange marker, the meaning is the same as the green marker, but the speed plus is different.

Cargo Train

Up side Indication Speed

Up side Indication Speed

Up side Indication Speed

Series 113/115

Up side Indication Speed

Up side Indication Speed+5km/h

Up side Indication Speed+5km/h

Series 211

Up side Indication Speed

Up side Indication Speed+15km/h
(R600m or more)
Up side Indication Speed+10km/h
(R600m or less)

Up side Indication Speed+5km/h

Series E217/209

Up side Indication Speed

Up side Indication Speed+15km/h
(R600m or more)
Up side Indication Speed+10km/h
(R600m or less)

Up side Indication Speed+5km/h

Series183/189/485

Down side Indication

Down side Indication

Down side Indication

Series253/255/E257/E259

Down side Indication

Down side Indication

Down side Indication



Speed limit Mark
(For Newtype Local train)

Limit End Mark

For Newtype Locar train

Limit End Mark

Description

Limited speed for local trains with maximum speed exceeding 100 km/h.
There is no speed limit for express trains.

It is installed at the position where the speed limit ends.
The limit will be lifted when all the vehicles pass this position.

Cargo Train

No limit

Limit End

Series113/115

100km/h

Limit End

Series 211

Indication Speed

Limit End

Series E217/209

Indication Speed

Limit End

Series 183/189/485

No limit

Limit End

Series 253/255/E257/E259

No limit

Limit End


Other signs

Notch On

Acceleration start

Estimated to start acceleration

Notch OFF

Acceleration End

Estimated to End acceleration

Signal Check

Signal Call

Indicates the position to call the Indicate of the frontward signal.

Station approach

Station approach

Indicates that the station is approaching.

Boundary of substation segment

Boundary of substation segment

Substation which supplies power to overhead wire will change with this display as the boundary.
Because there is a possibility that the electric wire will cut due to the potential difference, you must not stop the train across this sign.


DOWN LOAD

BVE5 Sobu and Narita line Basic package Ver.5.61

Download(English)
BVE_narita561e.zip/81.9MB

This package contains all the add-on data necessary for driving other than the vehicle.


Data that can be driven

Local Service 441M

From Chiba to Choshi(Via Narita Line)
Driving section Chiba to Sawara 56.1km(35mile)
Series 209 4cars

It is an Local train leaving Chiba station before noon, and it is crowded till the Yotsukaido.
This train leaves after passing the Narita Express.
There is little leisure time to go to Narita station, but Narita Eastern is plentiful hours of leisure and you are required to drive slowly.
The time required from Chiba to Sawara is 63 minutes, and the station with a long stopping time is about 1 minute 30 seconds at Narita station.

Series 209 EMU

Series 209 EMU is the main train of Sobu line and Narita line, Kashima line Local Service.
It appeared as a car in Keihin Tohoku Line in 1993 but due to the introduction of new models, it was diverted to each route in Chiba prefecture from 2010.

The 209 series has 4-car train and 6 car train.

Please download the data of BVE created by Mr. Kazuma (Kazuma's BVE Website).

Local Service 443M

From Chiba to Choshi(Via Narita Line)
Driving section Chiba to Sawara 56.1km(35mile)
Series 211 5cars

As with 443 M, it is an ordinary train leaving Chiba station by noon, and it is crowded to the Yotsukaido. At Chiba station I will depart after passing the Narita Express. In Chiba area it is driving in 211 series which was active for several years.

Series 211 EMU

The 211 series EMU was introduced in 1986 on the Tokaido Line and the Utsunomiya Line / Takasaki Line and was introduced in 2006 on each line of the Boso Peninsula including Sobu Line and Narita Line.
But due to the introduction of the 209 series EMU, it has been transferred to the Nagano area in several years.

The 211 series has 5 car train.

Please download the data of BVE created by Mr.shallow-field(CIRCULATION LANE).


BVE5 Sobu and Narita line Series183/189 Limited Express add on package Ver.5.61

Download(English)
BVE_narita183_561e.zip/32.2MB

BVE Sobu and Narita line Basic package and BVE Kashima line Basic package installation is required to use this package.
Overwrite the basic package.


Data that can be driven

Limited Express 9035M AYAME No.93(in2007)

From Shinjuku to Kashima-jingu(Via Narita Line)
Driving section Chiba to Kashima-jingu 73.9km(46mile)
Series 183 9cars

Ayame means Iris in japanese.
This train is extraordinary Increase train, for Sawara and Itako's Iris Festival(Ayame-Matsuri).
It is operated Saturday and Sunday of june every year.
This train used old-fashioned express 183 series EMU in 2007.

Series 183 EMU

The 183 series EMU was a vehicle developed by JNR (then) in 1972, prototype appeared in electrification opening in Boso area.
In 1975, type1000 appeared as cold / snow resistant specifications.
Since then, he was active in the East Japan area for Limited express trains, but in 2005 it finished running as a regular express and became for a special train.

Limited Express 9035M AYAME No.91(in2010)

From Shinjuku to Kashima-jingu(Via Narita Line)
Driving section Chiba to Kashima-jingu 73.9km(46mile)
Series 189 6cars

A temporary train to the Ayame festival in 2010 was operated using the 189 series train operated in Nagano.
From Kashima Jinguma Station to Kajima soccer stadium Station, it will be driven as a forward train to hold.
This train used old-fashioned express 189 series EMU in 2010.

Series 189 EMU

Series 189 EMU was based on 183 series and appeared in 1975.
Series 189 EMU is vehicle equipped with equipment that can connect and operate auxiliary locomotives beyond Usui Pass (a pass on the Shinetsu line, which is a main route from Tokyo to Nagano city).
Because the Shinkansen opened to Nagano in 1997, the express train connecting Tokyo and Nagano was abolished, it came to be used as a mixture with the 183 series after transferring to various places.
And, in 2005, as a limited express train finished, afterwards driving mainly by local trains and extraordinary trains in the Nagano area is mainly.

Please download the data of BVE created by Mr.Rock_on(Mikan Go Go) JR Train Package.


BVE5 Sobu and Narita line Series 113 Local Train add on package Ver.5.61

Download(English)
BVE_narita113_561e.zip/3.76MB

Basic package installation is required to use this package.
Overwrite the basic package.


Data that can be driven

Local Service 1449M

From Chiba to Narita
Driving section Chiba to Narita 29.2km (18mile)
Series 113 6cars

It is a local train of Sobu and Narita line around 2005.
Although it is driving by old style 113 series train, the current driving time does not change.

Local Service 2433M

From Narita to Choshi
Driving section Narita to Sawara 26.9km(17mile)
Series 113 4cars

It is a local train at the Narita Line in the morning around 2005.
At several station's on the route, we stop for a few minutes because of passing with the opposite train.

Series 113 EMU

113 series train appeared in 1963, the vehicle was introduced in the DC electrified section of the JNR a lot.
In Chiba area, he was active from 1972 to 2011 but retired due to introduction of 211 series and 209 series.

Please download the data of BVE created by Mr.Rock_on(Mikan Go Go) JR Train Package.


BVE5 Sobu and Narita line Freight Train add on package Ver.5.61

Download(English)
BVE_naritaFl_561e.zip/83KB

BVE Sobu and Narita line Basic package and BVE Kashima line Basic package installation is required to use this package.


Data that can be driven

Freight train No.71

From Kosigaya Freight Terminal to Kamisu
Driving section Chiba to Kashima Soccer studium 75.9km (47mile)
Series EF65(Electric locomotive)+Container freight car 13cars

This is Freight train to the Kashima industrial area. Drive This train from Chiba to the Kashima Soccer stadium station which is a relay station of the locomotive.

Series EF65 Electric locomotive

EF 65 series, electric locomotive started production from 1965.
It was developed as a high-speed freight train of the flat railway line, and was active in freight trains such as Tokaido Line and Sanyo Line and towing of sleeping limited express trains.
Today, late-stage EF65 type1000 are mainly used for towing freight trains in branch lines.

Please download the data of BVE created by Wai(Wai's room) EF65 Train Package.


Copyright

The route file, the objectfile, and the sound file of BVE Sobu and Narita line have the copyright in 'Nakano_Kazusa' excluding part.
Mr. RON has the copyright by data in the RON folder in the object folder.

"It is forbidden for anyone other than Nakano_Kazusa to publish this data!"
No upload! No P2P!
So do not re-use it without permission.

23:03 2017/02/21
Back to BVE Index page



Index page
(C)Nakano_Kazusa 2013- All right reseved
